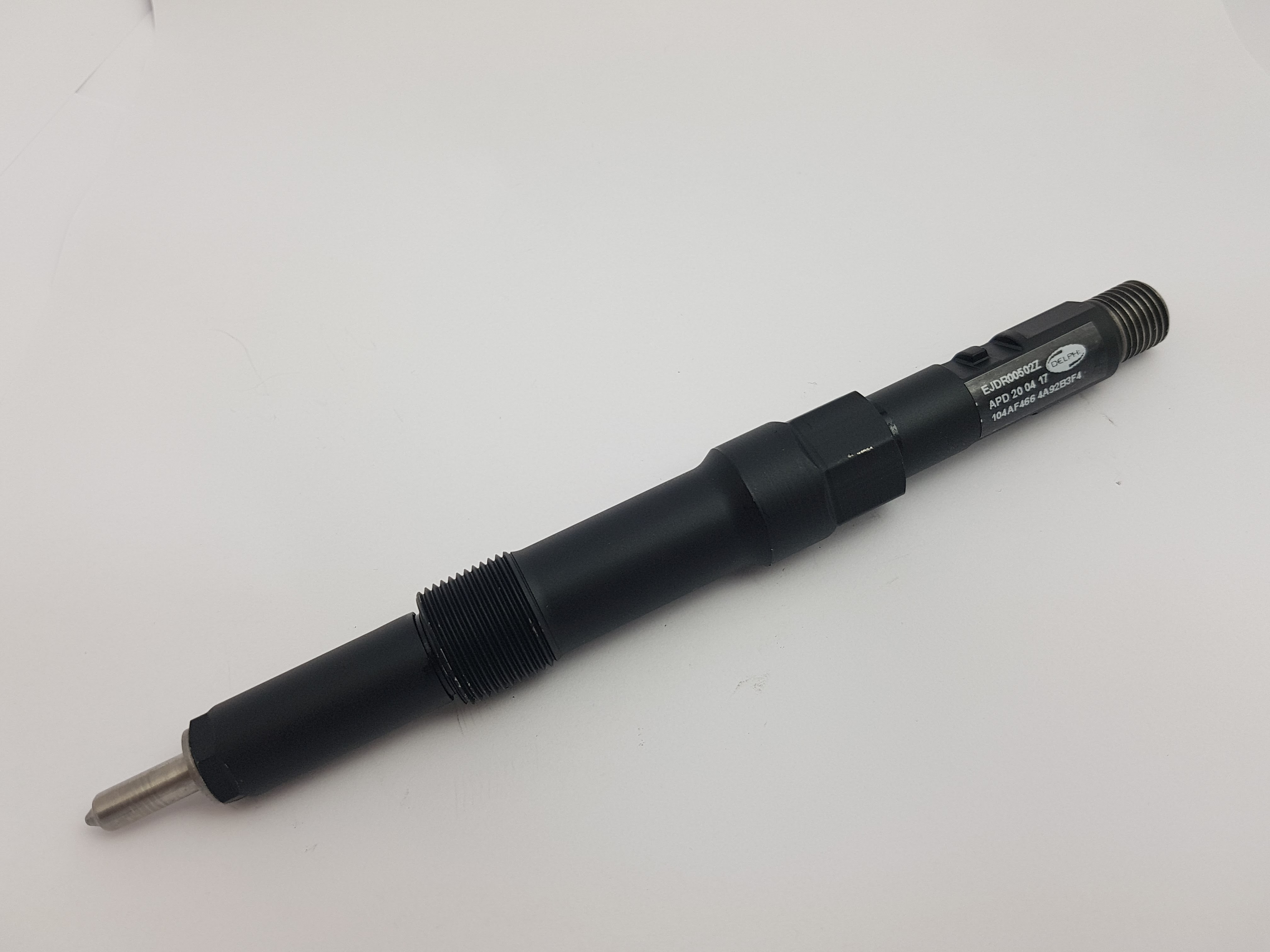

Ford Mondeo III Reconditioned Injectors EJDR00502Z

Home > Ford Diesel Injectors > Ford Mondeo III > Ford Mondeo III Injectors

Make : Ford
Model : Mondeo III
Condition : Reconditioned

Manufacturer : Delphi

Manufacturer Part Number : EJDR00502Z
R00502Z
3S7Q9K546CB
3S7Q-9K546-CB
1307449

Production Date From : 2001
Production Date End : Present

Power Output : 85kW
Engine Capacity : 2
Cylinders : 4

Engine Codes : PUMA

In Stock

Call For Price

01784 437 228

Why is there a surcharge and what is it for?

Most of our products are sold on an 'Exchange' basis. This means that we will give you a refund of the surcharge plus VAT when your old pump or injectors are received by us within 30 days. These need to be undamaged, serviceable and as removed from the engine.

When you return the old units, place and seal in the same packaging we sent you our units in and send to our Egham address.

When we receive your old injectors or pump a surcharge refund plus VAT is made to the same credit or debit card that you used to pay initially.

We take your old injectors and or pumps, and then remanufacture them in due course and once complete and tested are then placed on our shelf as stock.

How do I send in my old part?

Once the old part has been removed form the vehicle, put in a robust sealed bag to contain any leaks and then carefully pack it in a strong box with plenty of padding to ensure it does not get damaged in transit. Parts should be sent to our Egham address.

We always advise customers to send their old part by recorded delivery to ensure that it can be tracked.

What happens if I don’t send back my old part?

Unfortunately, we will not be able to refund the surcharge if we do not receive your old part or, if we have not received your old part 30 days after your purchase.

How To Find Part Numbers On Injectors

Bosch

Bosch have several shapes of injector, as you can see from the photo’s and for the more popular types the part number is on the plastic solenoid and an example of the format is 0445 XXX XXX.

The 0445 110 XXX series usually has the part number right on the top of the injector so can be visible whilst still installed in the vehicle if clean enough. Bosch have another injector we call PD type and it has a large spring on the top and the solenoid is in the middle, set at right angles to the injector. This injector part number format is 0414 720 XXX and this is located around the circumference of the solenoid.

This is another 0445 110 XXX

This is a Bosch Piezo injector 0445 115 XXX and the part number is on the side of the solenoid and less likely to be visible whilst installed:

Bosch PD 0414 720 XXX

Siemens/VDO Continental

Similar to Bosch, the Siemens part number is usually on the top of the injector but it is often almost impossible to read as the printing is feint to start with. It is better to look up the injector you require via vehicle make/model/year/engine size and engine code. The part number will either be something like 5WS40156 (which is the number we prefer) or 9657144580 or 03L130277B or A2C59513554.

All Siemens injectors have very similar rounded solenoids.

Delphi

Delphi injectors come in two styles, they are both long and slim like a fat pencil. The older type has the part number such as EJBRXXXXXD on a label on the side of the injector, it cannot be read in situ and often the label is damaged or unreadable once removed. The newer types have a small plastic squarish top with the part number like EMBRXXXXXD and this is visible whilst still installed in the engine.

Older Delphi

Newer Delphi

Denso

Denso injectors have a stainless steel solenoid with a small 2 or 4 pin light brown plastic connector coming out of the top of it. Denso injectors have many styles of part numbers such as 23670-27030 or RF5C-13H50 or 09500-5650 or 6C1Q9K546-AC. All of the part numbers are on the body of the injector which cannot be read whilst installed and although etched in the metal, it is still very difficult to read unless ultrasonically cleaned.

Delivery Information

We use a number of delivery companies, namely TNT, DPD, and DHL. The cost of delivery will be quoted if you enter the country of destination and a post/zip code. Currently most delivery’s for UK and Europe are made next day, elsewhere the delivery time can be 3 to 5 days or more depending on where you are. Please retain the shipping package to use for your old units if returning them for a surcharge refund.

Payment

We can accept payments by any debit or credit card (but excluding Diners Club or American Express), PayPal and also bank transfer. If paying by bank transfer please ask us to send you a pro-forma invoice so we can track the payment when it arrives at our bank.
